Boxabl Site Prep & Utilities: The Torrance Owner’s Guide
Site prep and utility work for a Boxabl in Torrance typically runs $18,000 to $42,000 installed, depending on how far your utility lines need to travel and what’s under your soil. We stock the common components on our trucks and can usually start within two weeks of permit approval. Most owners discover their site work wasn’t done right when the water pressure drops, the panel trips in summer heat, or the unit settles unevenly months after delivery.
The site prep and utilities phase is where a Boxabl either becomes a proper home or a permanent headache. A Boxabl arrives as a folded steel-and-foam structure that weighs roughly 16,000 pounds. It needs a foundation that stays dead level, utility stubs placed within a tight tolerance, and drainage that handles Torrance’s winter rain without letting water pool under the steel chassis. When any of those fall short, the symptoms show up slowly at first. A door that sticks in August. A bathroom fan that sounds labored. A breaker that trips when the air conditioner and the dryer run at the same time.
We see this work from both sides. Seedling ADU Torrance is an independent service provider, not affiliated with Boxabl, but we’ve prepped lots throughout Torrance for Boxabl deliveries, including projects near Del Amo and along the 110 corridor. Ben Ortega has walked enough of these sites to know that the difference between a smooth install and a failed inspection usually comes down to what got measured and what got assumed.
Which Boxabl Models This Applies To

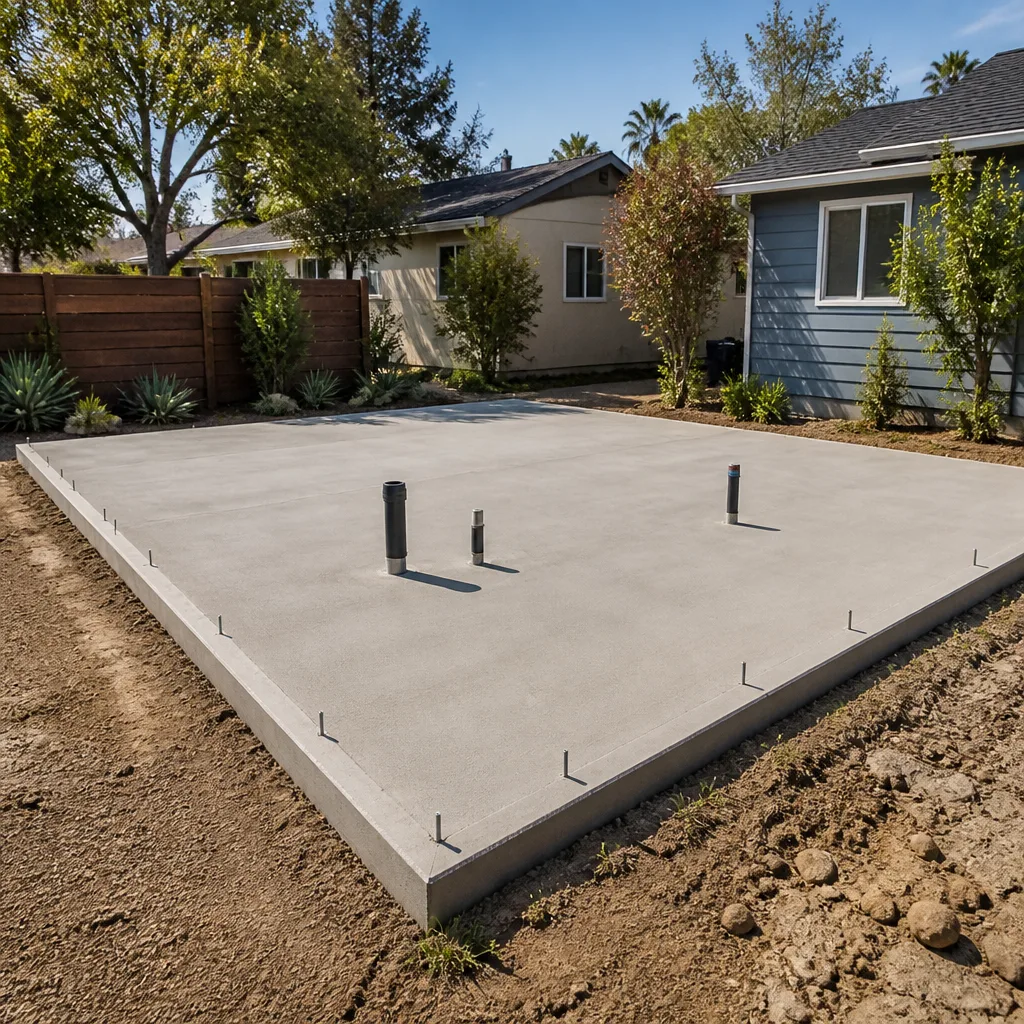

The site work rules are nearly identical for the Boxabl Casita, the main model currently shipping to California homeowners. With a footprint of roughly 19 by 19 feet and an unfolded weight that approaches 16,000 pounds, the unit sits on a steel base frame that requires a level concrete pad or engineered foundation designed specifically for that load and footprint.

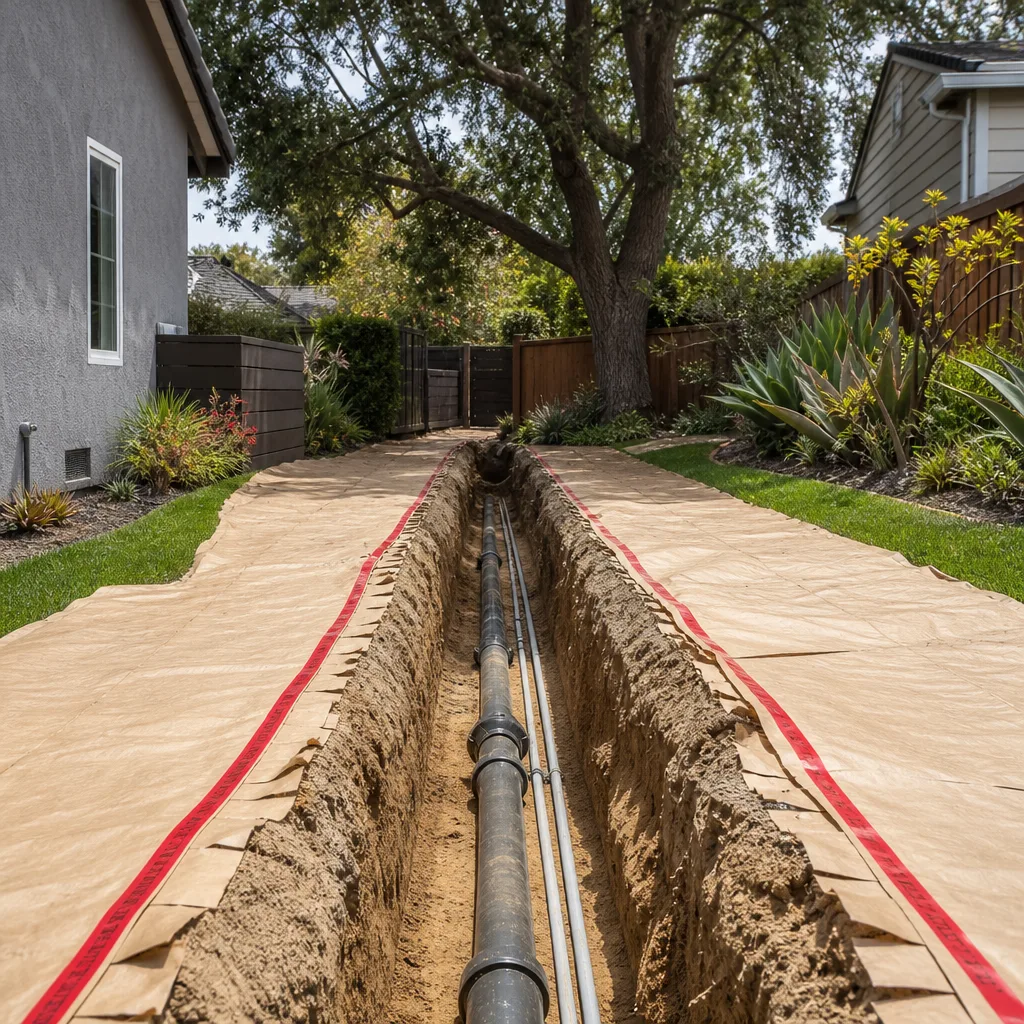

Here’s where Torrance owners get tripped up. The utility connection points on a Casita are clustered on one short side of the unit. If your lot has the electrical service entrance or sewer lateral on the opposite side, the underground run gets longer, which means trenching through whatever your yard is made of. In Torrance, that’s often compacted clay that’s hard digging, or older lots in the South Bay with unexpected fill dirt from decades of re-grading. The exact stub-out location matters more than most people realize. Boxabl specifies utility rough-in locations within a few inches, not a few feet. Get it wrong and you’re cutting into fresh concrete or, worse, discovering the error after the unit is set and the connection won’t reach.
For the OEM versus aftermarket question on site prep components: there is no “Boxabl-brand” trench or foundation. What matters is the concrete mix, the rebar schedule, the panel rating, the conduit size, and the drainage slope. We source from the same suppliers any local engineering firm specs, and we match every component to your unit’s load sheet and your city’s current code. Torrance has its own amendments to the California Residential Code, and our permits reflect that. A good aftermarket panel or disconnect is not a compromise; it’s just a component chosen for your amperage and your inspector’s requirements.
Signs Your Boxabl Site Prep & Utilities Is Failing
- Visible cracking in the foundation pad or approach slab. Boxabl units settle as one rigid piece, so a crack in the pad usually means uneven bearing underneath. In Torrance’s expansive clay, wet winters swell the soil and dry summers shrink it. Without proper compaction and drainage, you’ll see hairline cracks grow wider within the first two years.
- Voltage flicker when a large appliance kicks on. An undersized feeder line or a loose connection at the main panel shows up as dimming lights or a momentary sag when the mini-split compressor or the washer starts. This is a sign the electrical run was not sized for the unit’s actual load.
- Slow drains or gurgling from the bathroom. A sewer lateral with insufficient slope or a belly in the pipe lets waste sit instead of flow. Boxabl plumbing stubs are compact, so a bad lateral reveals itself as standing water in the shower pan or a bathroom that drains slower each month.
- Standing water near the unit after rain. The pad should slope away on all sides. If water pools against the steel base frame, rust and moisture intrusion become a question of when, not if. This is especially common on flat Torrance lots with poor original grading.
- Condensation or musty smell near the floor line. When the vapor barrier under the unit is missing, damaged, or not sealed properly, ground moisture moves up through the flooring assembly. You’ll notice it first as a damp smell that won’t go away no matter how many times you run the dehumidifier.
Replacement Cost & What’s Included
For a typical Torrance lot, here’s what we quote and why the range moves:
| Component | Installed Range | What Moves the Price |
|---|---|---|
| Foundation pad (level, engineered for 16k lb load) | $8,500 – $14,000 | Soil condition, access for concrete trucks |
| Electrical service and conduit to unit | $3,200 – $6,500 | Distance from main panel, panel upgrade needs |
| Water supply line and connection | $1,800 – $3,400 | Trench length, meter location |
| Sewer lateral or connection to existing line | $2,400 – $6,000 | Depth of existing lateral, trenching obstacles |
| Site drainage and grading | $1,600 – $4,200 | Lot slope, retaining needs, soil type |
| Permits and inspection fees | $1,200 – $2,800 | Torrance-specific fees and plan check |
Every quote is a written line item. You’ll see the parts cost, the labor cost, and the permit fee as separate entries before you sign anything. If the trench hits something unexpected, we stop and call you. No change orders appear without a conversation. The work is covered by the 365-Day Done Right Promise, in writing, so if a drain sags or a pad cracks within that year, we’re back to make it right.
DIY or Call Us?
There is a safe version of DIY here and a dangerous one. You can safely check your panel for a tripped breaker, inspect your foundation for new cracks, watch your drains after a heavy rain, and take photos of any standing water. That information helps us quote accurately over the phone.
What you should not do yourself: dig a trench without utility locating, modify any electrical connection on a Boxabl, attempt sewer work, or pour concrete against a live unit. Underground lines in Torrance can be shallow, and hitting a gas or electric line with a shovel changes a Saturday project into an emergency. Electrical work inside the unit requires a licensed electrician, full stop. Boxabl systems are compact and the tolerances are unforgiving. If you’re seeing any of the failing signs above, call us at (424) 488-0926 and we’ll put eyes on it. Ben walks every site twice before we write the first number.
Measure it right the first time and you only have one conversation about the budget.
Key Takeaways
- Torrance site prep for a Boxabl Casita totals $18,000 – $42,000 installed, foundation through utilities.
- The utility stubs must land within inches of Boxabl’s spec, not feet. Getting this wrong means cutting concrete.
- Torrance’s clay soil expands and contracts through the year, so compaction and drainage design matter more than on sandy lots.
- We stock common panels, conduit, and drainage components, and we handle the permit with Torrance’s current code amendments.
- Seedling ADU Torrance also works with Abodu, Cover, and Dvele units, so if you’re replacing or adding a second unit, we can match the site work to the product.
FAQs
A properly engineered foundation pad in Torrance should last the life of the unit, typically 40 to 60 years, provided the drainage keeps water away from the steel base frame. The utility runs themselves last 30 to 50 years, with the sewer lateral being the most likely component to need attention first due to soil movement and root intrusion in older neighborhoods.
Often yes. A cracked pad can sometimes be stabilized with epoxy injection or a supplemental pier if the movement has stopped. A sagging sewer lateral can be sleeved or spot-repaired rather than fully re-trenched in many cases. The decision comes down to the extent of the failure and whether the existing work meets current Torrance code. Call (424) 488-0926 for an exact assessment, and estimates are free.
For a typical Torrance lot, the full scope from permit approval to finished utility connections runs 3 to 6 weeks. Weather, inspection scheduling, and soil conditions move that window. We’ll give you a written timeline before we start, and if something shifts, you’ll hear it from us the same day, not at the final walkthrough.
We stock the common electrical panels, conduit, disconnects, and drainage components that Boxabl installations need, so most jobs don’t wait on parts. Special-order items like specific meter enclosures or engineered foundation hardware usually arrive within 5 to 10 business days in Torrance. Tell us your unit’s model and year when you call and we’ll confirm what’s on hand before you hang up.
Written by Ben Ortega, Owner, Seedling ADU Torrance at Seedling ADU Torrance, serving Torrance and nearby areas.
